Web Application Penetration Testing Fundamentals Web 应用渗透测试基础

Source: Pluralsight — Web Application Penetration Testing Fundamentals

Overview 概述

Web application penetration testing applies attacker techniques against a target application to discover security flaws before real attackers do. The methodology follows a structured path: understand the application, map attack surfaces, exercise controls, test inputs, and report findings. This note covers the full methodology from pre-engagement through reporting, along with the core attack categories (authentication, session, access control, injection, logic flaws) and the Security+ concepts of reconnaissance, privilege escalation, pivoting, and persistence.

1. Structure of Web Applications Web 应用结构

1.1 HTTP Methods HTTP 方法

HTTP methods

define the action a client requests from a server:

Method	Purpose
`GET`	Retrieve a resource; parameters passed in the URL
`POST`	Submit data in the request body; not stored in logs or browser history
`PUT`	Create or replace a resource at a given URI
`DELETE`	Remove a resource
`HEAD`	Same as GET but returns headers only
`OPTIONS`	List methods supported by the server
`PATCH`	Partial modification of a resource

1.2 HTTP Request and Response Structure

An HTTP request consists of:

Request line: method, URL, protocol version
Headers: Host, User-Agent, Accept, Cookie, Content-Type, etc.
Body (for POST/PUT): form data, JSON, etc.

An HTTP response consists of:

Status line: protocol version + status code (200 OK, 301 Moved Permanently, 404 Not Found, 500 Internal Server Error)
Headers: Server, Set-Cookie, Content-Type, Content-Length, etc.
Body: HTML, JSON, binary content, etc.

The Server response header leaks fingerprinting information and should be suppressed or obfuscated in production:

1.3 URL Structure URL 结构

URL (Uniform Resource Locator)

specifies the location and protocol for retrieving a web resource.

protocol://domain-name.top-level-domain/path?query=value#fragment

Components:

Part	Example	Notes
Protocol	`https://`	Scheme (http, https, ftp)
Domain	`www.example.com`	Resolved via DNS
Port	`:443`	Optional; default 80 (HTTP) / 443 (HTTPS)
Path	`/products/list`	Resource path on server
Query string	`?id=102&cat=5`	Key-value pairs; attack surface for injection
Fragment	`#section2`	Client-side anchor; not sent to server

1.4 URL and HTML Encoding 编码

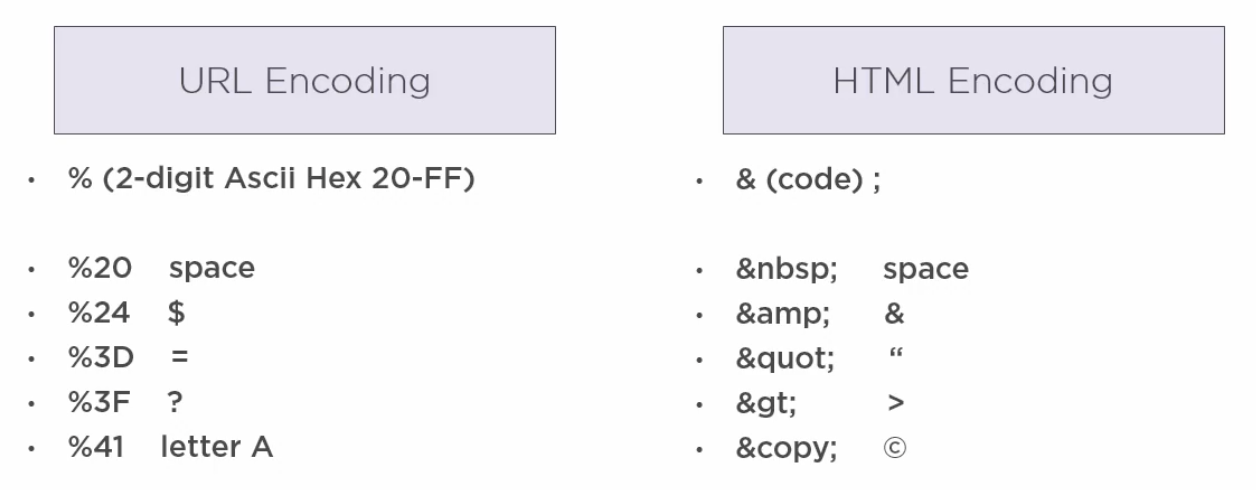

Browsers and servers encode special characters to ensure safe transmission. A penetration tester must be fluent in both to craft and recognize encoded payloads.

URL encoding: replaces unsafe characters with % followed by the 2-digit ASCII hex value.

%20  space       %24  $       %3D  =       %3F  ?       %41  A

HTML encoding: uses named or numeric entities.

&nbsp;   space       &amp;   &       &quot;   "       &gt;   >       &copy;  ©

Bypassing input validation often requires double-encoding or mixed-case encoding. If a WAF blocks <script>, try %3Cscript%3E or <script>.

1.5 Forms and Hidden Inputs

HTML forms are the primary mechanism for accepting user input. Attributes worth examining:

action — the URL receiving the submitted data
method — GET (parameters in URL) or POST (parameters in body)
hidden input fields — not displayed on screen but transmitted with the form; can store state, session data, prices, or access flags
disabled attribute — prevents submission or editing client-side, but can be removed via a proxy before the request leaves the browser
maxlength attribute — limits input length on the client, but has no effect if a proxy intercepts and modifies the value

Burp Suite’s proxy options include “Unhide hidden form fields” and “Prominently highlight them” — enabling this reveals all hidden inputs in the browser view.

are small pieces of data the server sends to the client, which the browser automatically includes in subsequent requests to the same origin.

Key security attributes:

Attribute	Effect	Absence risk
`Secure`	Transmit cookie over HTTPS only	Cookie sent over plain HTTP; sniffable
`HttpOnly`	JavaScript cannot read the cookie	XSS can steal the cookie via `document.cookie`
`SameSite=Strict/Lax`	Blocks cross-origin requests from including the cookie	CSRF vulnerability
`Path`	Restrict cookie to a URL subtree	Cookie exposed to unintended endpoints
`Expires/Max-Age`	Persistent vs session cookie	Stale tokens remain valid after logout

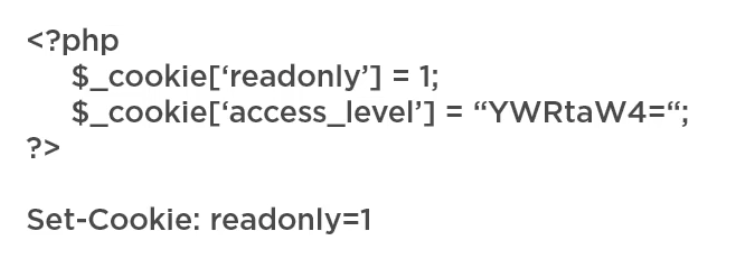

Insecure cookie example — access_level stored as Base64 without encryption:

A tester who observes YWRtaW4= (Base64 for admin) in a cookie can simply change it to Z3Vlc3Q= (guest) or vice versa to test for privilege escalation via cookie manipulation.

Examine cookies for:

Credentials or tokens stored in clear text or weakly encoded
Discount rates, prices, or access levels stored client-side
Whether the cookie value is reflected in SQL queries, HTML, or other inputs (injection risk)

1.7 Sessions 会话管理

HTTP is stateless

— each request is independent. Sessions solve this by maintaining server-side state, with a single session token stored in a cookie pointing to that state.

Why sessions are preferable to cookie-stored state: if access level were stored in a cookie (e.g., guest), a user could simply change it to admin. Moving state to the server means the cookie only points to a record, not containing the record itself.

2. Pre-Engagement 前期准备

2.1 Engagement Types 测试类型

Type	Tester knowledge	Realism
Black box	Zero prior knowledge of the application	Mimics an external attacker
Gray box	Partial knowledge (e.g., credentials, documentation)	Mimics a malicious insider or partner
White box	Full source code, architecture, credentials	Most thorough; finds deepest issues

2.2 Rules of Engagement 交战规则

The Rules of Engagement (ROE) document defines what is permitted during the test. It must be agreed upon and signed before any testing begins.

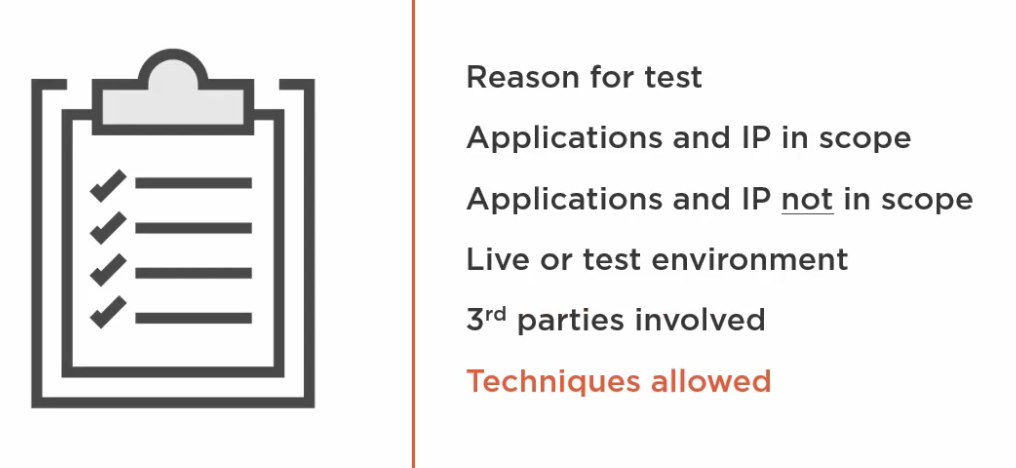

ROE items include:

Reason for the test
Applications and IP ranges in scope
Applications and IP ranges out of scope
Whether the test is against a live or test environment
Third-party services involved (SaaS, CDNs, payment processors)
Techniques allowed (brute force, social engineering, DoS-style tests)

2.3 Scoping 范围确定

The scoping document provides the operational details for the engagement:

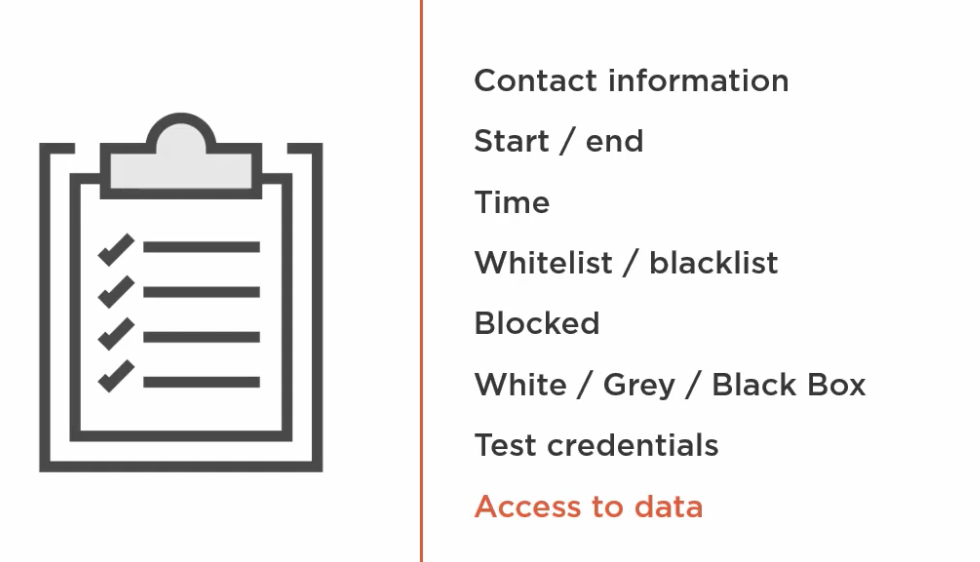

Scoping details include:

Contact information and escalation path
Start and end dates / time windows
Whitelist (allowed source IPs) and blacklist (off-limits systems)
Whether testing is blocked by WAF/IDS and if bypass is authorized
Test credentials for each access level required
Access to data (read-only, write, admin)

2.4 Passive vs Active Reconnaissance 被动 vs 主动侦察

Passive reconnaissance

collects information without directly interacting with the target system:

Advantages: leaves no trail; can be conducted at any time without disrupting the target
Limitations: incomplete; cannot detect applications not currently sending traffic; cannot distinguish deliberate obfuscation
Sources: public databases (WHOIS, DNS, certificate transparency logs), social media, job postings, dumpster diving, social engineering, listening on network traffic
Perform first to understand a legacy system before touching it

Active reconnaissance

directly focuses on the target system:

Port scans, traceroute, network mapping
Spidering, forced browsing, fingerprinting
Social engineering to obtain passwords or gain access
Leaves traces in server logs and may trigger alerts

3. Footprinting 信息收集

3.1 Spidering 爬站

A spider (also called a crawler) automatically follows every link found on the site, building a site map. Tools: OWASP ZAP spider, Burp Suite crawler.

The spider builds a site map exposing:

All page names and URL paths
GET and POST parameters on each page
The HTTP methods used per page

This site map becomes the attack surface inventory — every parameter is an entry point to test.

3.2 Server Fingerprinting 服务器指纹识别

Fingerprinting

identifies the technology stack powering the application. Sources:

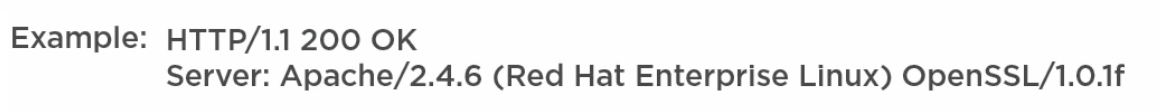

HTTP response headers: Server: Apache/2.4.6 (Red Hat Enterprise Linux) OpenSSL/1.0.1f reveals OS, web server version, and SSL library
Error pages: framework-specific stack traces (PHP, .NET, Java)
File extensions: .php, .aspx, .jsp reveal server-side language
Cookie names: JSESSIONID → Java; PHPSESSID → PHP; ASP.NET_SessionId → ASP.NET
Browser extensions: Wappalyzer auto-detects CMS, frameworks, analytics, and CDN vendors including version numbers

Tools: httprint, FOCA, Wappalyzer.

3.3 Discovering Hidden Content 发现隐藏内容

Several techniques uncover pages and files not linked from the main navigation:

Technique	Description
`robots.txt`	Lists paths the site owner wants search engines to ignore — often discloses admin paths, backup files, sensitive directories
Directory brute force	Tries common path names (`/admin`, `/backup`, `/api`, `/config`) using wordlists (DirBuster, Gobuster)
Google dorking / OSINT	`site:example.com filetype:sql` reveals publicly indexed sensitive files
FOCA	Extracts metadata from publicly indexed documents (PDF, DOCX) revealing usernames, OS, software versions, internal paths
Wayback Machine	Historical snapshots may reveal old endpoints, parameters, or technologies no longer served

3.4 Automated Scans 自动扫描

Before manual testing, run automated scanners to find low-hanging fruit — missing security headers, weak cipher suites, common misconfigurations, and known CVEs:

OWASP ZAP — free, open-source; active scan available by right-clicking a site tree node
Burp Suite (PortSwigger) — industry-standard commercial tool; active scan on any branch
Nikto — web server scanner
Nessus / Nexpose / IBM AppScan — enterprise vulnerability scanners
CMSmap / WPscan / Joomscan — CMS-specific scanners for WordPress, Joomla, Drupal
Sqlmap — SQL injection automation with DBMS enumeration
SSLscan / ssllabs.com — analyze certificate, cipher suites, and TLS configuration

Important: automated scanner results must be reviewed and validated manually before inclusion in a report. Never dump raw scanner output into a client report.

3.5 Analyzing Results 分析结果

After spidering and scanning, build a parameter inventory spreadsheet:

Column	Contents
Page name	URL path (e.g., `/basket.jsp`)
HTTP method	GET or POST
Parameters	All query/body parameters (`price`, `productId`, `quantity`)
Cookies	Cookie names set or read on this page
HTTP/HTTPS	Protocol in use
Referrer	Originating page (relevant when parameters differ by referrer)

This spreadsheet drives the manual testing phase — every row is an entry point to exercise.

4. Attacking User Controls 攻击用户控制

4.1 Authentication 身份认证

Authentication

verifies who the user is. The primary risk areas are credential transit, default credentials, password policy, and lockout.

Credential transit

Scenario	Risk	Severity
POST over HTTPS	Credentials protected in transit and not in URL/logs	Secure
Clear text HTTP (no HTTPS)	Susceptible to man-in-the-middle	Medium
HTTP page POST to HTTPS page	SSL strip attack	Medium–High
GET over HTTPS	Credentials stored in URL, browser history, and server logs	Medium–High

Default credentials

Try: admin, administrator, root, system, sa, super, user, guest, test, company name
Search for CMS/framework default passwords online
Mark any successful login with default credentials as High

Password policy

A strong policy requires:

Minimum 8 characters (no low upper limit, ideally 20+)
Mix of uppercase, lowercase, number, and special character
No restrictions on special character types

Find the policy on the registration or password reset page. Test by attempting to set a weak password like 123 or password.

Account lockout

A secure lockout policy:

Locks after 5–8 failed attempts
Enforces a cooldown period (typically 15 minutes)
Alternatively requires phone/email unlock or help desk intervention

To test: attempt 20+ logins. If the account does not lock, there is likely no lockout policy. If locked, try every 5 minutes to detect the waiting period.

Password reset flow

A complete secure reset flow:

User provides email or username
Server always returns a positive response — never reveals whether the address exists (prevents username enumeration)
Account is locked from accepting the old password after reset is initiated
A one-time token is emailed; token expires in 5–20 minutes
Token is single-use and invalidated after use
On the reset page, user is required to enter old password before setting new one

Test by: starting a reset at end of day and clicking the link next morning — if it still works, it is a finding.

Security questions

If questions have a fixed answer set (e.g., favorite NBA team = 30 options), check whether account lockout applies to question guesses
If not limited, brute force is feasible

Username enumeration

If the application reveals whether a username or email exists (via error messages like “username not found”), an attacker can:

Run a list of the top 1,000 common usernames through the login or reset endpoint
Identify which ones return a different response
Use confirmed usernames as the target list for a password attack

This is a High finding. All endpoints (login, reset, registration) must return identical generic responses for both valid and invalid usernames.

4.2 Session Management 会话管理

Any weakness in session management is a High or Critical finding.

Session token analysis — 5-step process

Generate multiple tokens — log in and out repeatedly; generate 20+ tokens across different users and times; if the same token repeats, that is a critical issue
Modify small pieces — change 1–2 characters at a time; if a segment can be modified without killing the session, it is not part of the verification — narrow the effective entropy
Compare across users — create accounts at different access levels; identical token segments across users may indicate hard-coded access-level fields that can be swapped
Look for static segments — a 14-character token with 6 always-identical characters means only 8 characters need to be brute-forced
Check for encoded meaningful content — decode with Base64, hex, or common ciphers; if username + timestamp is encoded and used as the token, the session can be forged

Protecting the session token

Token must never appear in the URL — it will be stored in server logs, browser history, and referrer headers
Cookie must have Secure and HttpOnly attributes
Session should be destroyed on logout, browser close, and inactivity timeout
Each login should either terminate existing sessions or terminate the new session if one is already active

Reference: The Web Application Hacker’s Handbook, Chapter 7 — Attacking Session Management.

4.3 Access Controls 访问控制

Access controls

define what an authenticated user is authorized to do.

Vertical escalation (privilege escalation)

Can a lower-privileged user access pages or functions reserved for admins?

Compare admin vs user sitemaps via Burp Suite’s Analyze Target
Attempt to navigate to admin-only URLs while authenticated as a regular user
Look for parameters like admin=true or role=admin in URL or cookies — test if setting them as a standard user grants elevated access

Horizontal access (IDOR — Insecure Direct Object Reference)

Can User A access User B’s data by changing an identifier?

Insecure Direct Object Reference (IDOR)

occurs when an object identifier (customer ID, transaction ID, file path) is directly exposed and no server-side authorization check verifies ownership:

GET /customer?id=831   → works for the current user
GET /customer?id=832   → should return 403 — but often returns another user's data
GET /transactions?txid=4198  → may expose another user's order and credit card info

IDOR was in the OWASP Top 10 as a standalone item until 2017, where it was merged into Broken Access Control. It is both an access control failure and a sensitive data exposure.

Other access control tests

Unauthenticated access: log out, then navigate directly to previously visited authenticated pages — check whether the server re-validates the session
Remember me cookie: log in with “remember me”, log out, and check whether the cookie persists and can be reused
Comments in source: developers sometimes leave access control TODOs in HTML comments; Burp Suite’s scanner surfaces all comments
Proxy login / help desk login-as: admin functions that log in as a customer should be restricted to internal IP addresses only and require strong authentication
Parameter-based access: if an admin button exists on a shared page, test whether POSTing that button as a standard user executes the function
File/media access: protected documents stored in a folder accessible by direct URL without authentication

5. Attacking Application Inputs 攻击应用输入

5.1 Attack Proxies 攻击代理

Attack proxies

sit between the browser and server, intercepting all HTTP/HTTPS traffic for observation and manipulation.

Tools:

Burp Suite (PortSwigger) — industry-standard commercial proxy; scanner, intruder, repeater, sequencer
OWASP ZAP — free open-source alternative

How they handle HTTPS: the proxy installs its own CA certificate; it terminates the TLS connection from the browser, reads and optionally modifies the plaintext, re-encrypts it with the server’s certificate, and forwards it — effectively a legitimate MITM.

A proxy removes all client-side controls:

maxlength HTML attributes are bypassed
JavaScript validation is bypassed
disabled form fields can be re-enabled
Hidden form fields are visible and editable
Prices returned from the server can be rewritten before the browser processes them

5.2 Input Channels (Vehicles of Data Transfer) 数据传输载体

All of the following transmit data between client and server and are attack surfaces:

Channel	Notes
URL query parameters	Visible in address bar; stored in logs and browser history
POST body parameters	Not in URL, but readable via proxy
HTTP headers	`User-Agent`, `Referer`, `X-Forwarded-For` — often trusted incorrectly
Cookies	May store encoded state, prices, access levels
Hidden form fields	Invisible to users but transmitted with forms
JavaScript variables	May be manipulated via browser devtools

The OWASP Testing Guide principle: “The most common web application security weakness is the failure to properly validate input from the client or from the server before using it.”

Michael Howard (Writing Secure Code): “All input is evil.”

5.3 Input Validation 输入验证

Input validation can be performed:

Client-side only — JavaScript, HTML attributes (maxlength, pattern, disabled): trivially bypassed via proxy. If this is the only control, it is a High finding.
Server-side — the only trustworthy layer; must always be present regardless of client-side controls
Both — best practice; client-side for UX, server-side for security

Validation approaches:

Reject known bad (blacklist): fragile; encoding bypasses are common
Accept known good (whitelist): preferred; only allow expected character sets and lengths
Sanitize/encode input before use in queries or output

6. Common Attack Methods 常见攻击方法

6.1 Fuzzing 模糊测试

Fuzzing

is the automated injection of unexpected or malformed data into all input channels to observe abnormal server responses.

Observation indicators:

HTTP status codes: unexpected 200 (when 400 or 403 expected) or 500 (server error revealing vulnerability)
Response length: significantly different length suggests the server processed input differently
Response time: longer time may indicate time-based SQL injection or CPU-intensive processing
Reflection: does the payload appear in the response body? (XSS surface)

In ZAP: right-click a request in the site tree → Attack → Fuzz → select the parameter to fuzz → add payloads manually or from built-in File Fuzzers lists.

Example finding: fuzzing a quantity field with -1 returns HTTP 200 and a negative total — the application accepted a negative quantity, potentially allowing a customer to receive a refund without returning items.

6.2 Cross-Site Scripting (XSS) 跨站脚本

XSS

injects a script into an application parameter that executes in the browser of another user.

Reflected XSS

Input is immediately reflected back in the response. The attack requires the victim to click a crafted link containing the payload in the URL:

https://example.com/search?q=<script>document.cookie</script>

If the application embeds the q parameter directly in the HTML response without encoding, the script executes.

Stored XSS

The payload is stored in the database (e.g., a comment or profile field) and served to every subsequent visitor:

Blog comment input: <script>alert('XSS')</script>

Any user who views the comment page executes the script. This is a Critical finding when it can steal session tokens.

DOM-based XSS

The attack never reaches the server — client-side JavaScript reads the payload from the URL/DOM and writes it back to the page:


// Vulnerable: takes URL fragment and writes to innerHTML without encoding
document.getElementById('output').innerHTML = location.hash.slice(1);

Payload: https://example.com/page#<img src=x onerror=alert(1)> — the onerror fires when the image fails to load.

To test DOM XSS in WebGoat: if <script>alert(1)</script> is blocked, try <img src=x onerror=alert(1)>.

6.3 SQL Injection SQL 注入

SQL injection

inserts SQL syntax into an input that is used to construct a database query, manipulating the query to return unauthorized data or bypass authentication.

Probe: enter a single quote ' or semicolon ; in input fields. A database error message reveals the DBMS in use (e.g., You have an error in your SQL syntax... MySQL).

Basic injection — the OR 1=1 technique:


-- Intended query:
SELECT * FROM users WHERE userid = 102;

-- Injected:
SELECT * FROM users WHERE userid = 102 OR 1=1;
-- 1=1 is always true → returns every row in the table

String context injection:

Input: ' or '1'='1
Resulting query: SELECT * FROM users WHERE username = '' or '1'='1'
-- Always true → returns all users

Key notes:

Each DBMS has its own SQL syntax — understanding the backend DBMS (from fingerprinting) is necessary
Tools: Sqlmap automates injection and DBMS enumeration
SQL injection is “solved for” in modern stacks using parameterized queries / prepared statements, but it still appears in legacy or poorly maintained applications

6.4 Cross-Site Request Forgery (CSRF) 跨站请求伪造

CSRF

tricks an authenticated user into unknowingly executing an action on a web application where they are currently logged in.

Attack mechanism:

The attacker crafts a URL or HTML page that makes a state-changing request (e.g., transfer money, change email)
The victim is social-engineered into clicking the link while their session is active
The browser automatically includes the session cookie, so the server processes the request as legitimate

Test: create an HTML page outside the target site with a link that triggers an authenticated action (e.g., transfer.aspx?to=attacker&amount=1000). Log in, then click the link from the external page. If the transaction executes, CSRF protection is absent.

Mitigation: CSRF tokens — unique, unpredictable, per-transaction tokens that the attacker cannot obtain from a cross-origin page. The server rejects requests lacking a valid token.

6.5 Insecure Direct Object Reference (IDOR) 不安全的直接对象引用

See Section 4.3 (Horizontal Access). Key points:

Change numeric IDs in URL parameters and POST bodies incrementally to access other users’ data
Check transaction IDs, customer IDs, file names, document IDs
Verify that server-side authorization (not just page-level authentication) checks ownership of every object before returning data

6.6 Other Injection Types 其他注入类型

Injection type	Trigger	Example
HTML injection	Input reflected into HTML without encoding	`<h1>You searched for: [input]</h1>`
LDAP injection	Input used in LDAP query	`(&(uid=admin)(password=*))` bypass
Code injection	Input passed to `eval()` or `exec()`	PHP `eval($_GET['code'])`
Command injection	Input passed to OS shell	`;cat /etc/passwd` appended to a ping command
XML/XPath injection	Input embedded in XML queries	`' or '1'='1` in XPath expressions

7. Logic Flaws 逻辑漏洞

7.1 Circumvention of Workflow 流程绕过

Workflow circumvention

exploits the assumption that users will follow the intended step-by-step process of an application.

Example — eCommerce checkout bypass:

Browse → Add to Cart → Apply Discount → Shipping → Payment → Confirm

Tests to run:

Navigate directly from step 1 to step 7 (skip payment entirely)
After earning loyalty points at step 6, force-browse back to step 2, reduce quantity, then jump to step 7 — do you keep the discount?
Intercept the payment confirmation token — is it a simple paid=1 flag that can be spoofed?

Patterns to look for:

Step stored in a cookie, hidden field, or URL parameter
Referrer-based access control (page6 checks that referrer is page5 — trivially bypassed)
Process steps that can be replayed to earn double rewards

7.2 Beating Limits 突破限制

Tests for limit bypass:

Upper/lower bounds: if the maximum quantity is 10, what happens with -1 or 0?
Financial thresholds: negative amounts to reverse a transfer direction and fall under a reporting limit
Input length: maxlength=5 attribute is client-side — inject 1,000 characters via proxy
Rate limits: test whether API calls are rate-limited or can be made without restriction

Example: transferring a negative amount (-$11,000) to effectively send $11,000 to an account while bypassing the $10,000 BSA reporting threshold check.

7.3 Process Timing 时序分析

Process timing

exploits measurable differences in response time between valid and invalid inputs.

Example — username enumeration via timing:

Request with bad username + bad password: returns in ~2,000ms
Request with valid username + bad password: returns in ~115ms (server found the user and checked the password)

By submitting the top 1,000 common usernames and measuring response times, valid accounts can be identified without relying on different error messages. This is username enumeration through a timing side-channel.

7.4 Spilling the Secrets 解密泄露

If one cookie is encrypted and another is encrypted in the same way but gets decrypted and reflected on the page, an attacker can use the application’s own decrypter to decrypt arbitrary encrypted values:

Observe that username cookie is encrypted and later reflected as the username on the page
Copy the encrypted value of another cookie (e.g., part_number) into the username cookie field
Submit — the application decrypts and displays the value of the part number

This demonstrates that security through obscurity (encrypting data without access controls on the decryption path) is not a valid security control.

7.5 Parameter Manipulation 参数操纵

Tests:

Submit admin-only buttons as a lower-privileged user: POST the button’s parameter and check if the server authorizes by session or only by UI state
Add parameters seen only in admin sessions: take cookies and parameters from an admin sitemap, inject them while authenticated as a standard user
Look for feature-flag parameters: admin=true, role=admin, debug=1 — test whether the server trusts these client-submitted values

8. Reconnaissance Concepts (Security+) 侦察概念

8.1 Passive Reconnaissance 被动侦察

Passive reconnaissance collects information from sources that do not involve directly communicating with the target:

Does not leave a trail that alerts administrators
Can be sustained over a long period without risk of disruption
Sources: public databases, OSINT, network traffic monitoring, dumpster diving, social engineering
Perform first when assessing a legacy system: **recommended to perform first to determine the vulnerability of a legacy system**
Limitation: may miss applications not actively sending traffic; cannot verify obfuscated information

8.2 Active Reconnaissance 主动侦察

Active reconnaissance interacts directly with the target:

Port scans, traceroute, network mapping, spidering, fingerprinting
Leaves entries in server logs; may trigger IDS/IPS alerts
Includes social engineering to obtain passwords or gain unauthorized access to network shares

8.3 Escalation of Privilege 权限提升

Privilege escalation

gains higher system privileges than originally granted:

How it works: a hole created when code is executed with higher privileges than those of the user running it. Breaking out of the executing code leaves the attacker with elevated privileges.
Example: exploiting an interactive process to access otherwise restricted areas of the OS
Web equivalent: changing a cookie value from guest to admin; modifying a role parameter; exploiting a IDOR to access admin functions

8.4 Pivoting (Island Hopping) 横向移动

Pivoting

uses a compromised system to attack other systems on the same network:

A compromised host becomes a platform for launching further attacks deeper into the network
Example: a third-party pen tester uses ARP cache poisoning to gain root access on a server, then moves laterally to another server not in the original target scope
Also known as island hopping — each compromised system is a stepping stone to the next target

8.5 Persistence 持久化

Persistence

separates the time of compromise from the time of the attack:

A backdoor, implant, or scheduled task is installed during an initial compromise and activated later
Example: an employee’s laptop is infected at a hotel; the company’s network is compromised only when the employee connects the laptop back to the internal network
In web application context: a stored XSS payload persists in the database and attacks every future visitor

9. Reporting 报告

9.1 Report Structure 报告结构

A penetration test report serves both technical and non-technical readers. Structure:

1. Executive Summary (1–2 pages)

High-level findings count by severity (Critical / High / Medium / Low)
Overall risk posture
Audience: management, legal, clients
No technical detail; no exploitation specifics
Mark as Private / Confidential

2. Scope of Work

Target systems and URL paths tested
Systems explicitly out of scope
Testing dates, window, contacts
Limitations imposed on the tester

3. Findings Summary

Count of findings by severity
Findings grouped by page or by vulnerability type
Summary table linking finding to severity and affected pages

4. Technical Findings Detail

One entry per finding per location
Include: vulnerability name, severity, affected URL/parameter, description, proof-of-concept screenshots, remediation guidance
Audience: developers implementing fixes

9.2 CVSS Scoring CVSS 评分

The Common Vulnerability Scoring System (CVSS) provides a standardized severity metric from the Forum of Incident Response and Security Teams (FIRST).

Base score factors:

Factor	Options
Attack Vector	Network / Adjacent / Local / Physical
Attack Complexity	Low / High
Privileges Required	None / Low / High
User Interaction	None / Required
Scope	Unchanged / Changed
Confidentiality Impact	None / Low / High
Integrity Impact	None / Low / High
Availability Impact	None / Low / High

For web application pen testing, the base score is typically sufficient. The CVSS 3.0 calculator is available at first.org.

Note on scanner findings: automated scanners assign default CVSS scores without context. Always validate scanner results before reporting — a finding rated Critical by the scanner may have Low impact given the specific application’s data sensitivity and exposure.

10. Tools Reference 工具参考

Tool	Category	Notes
Burp Suite	Proxy, scanner, intruder	Industry standard; commercial; use for intercept, fuzz, session analysis
OWASP ZAP	Proxy, scanner, spider	Free, open-source; equivalent to Burp for most tasks
Nikto	Web server scanner	Quick scan for common misconfigurations
Sqlmap	SQL injection	Automated detection and exploitation; DBMS enumeration
CMSmap / WPscan / Joomscan	CMS scanner	WordPress, Joomla, Drupal-specific vulnerability scanning
DirBuster / Gobuster	Directory brute force	Discovers hidden paths using wordlists
Wappalyzer	Fingerprinting	Browser extension; identifies technologies and versions
Firebug / DevTools	Client-side debugging	Real-time JavaScript/DOM editing for XSS/CSRF bypass testing
FoxyProxy	Proxy toggle	Browser extension to route traffic through Burp or ZAP
SSLscan / ssllabs.com	TLS analysis	Cipher suites, certificate validation, protocol support
FOCA	OSINT	Metadata extraction from publicly indexed documents
Kali Linux	Platform	Pre-loaded distro containing Nmap, Sqlmap, CMSmap, and more

Practice Lab Environments 练习环境

Lab	Contents
OWASP BWA (Broken Web Apps)	All-in-one VM: bWAPP, WebGoat, SecurityShepherd, DVWA, BodgeIt, Mutillidae, broken WordPress/Joomla
WebGoat	OWASP Java-based training app with lessons for each vulnerability
bWAPP	PHP-based vulnerable app; covers OWASP Top 10
DVWA	Damn Vulnerable Web App; adjustable security levels
SecurityShepherd	CTF-style web security training platform

Key Takeaways 关键要点

The pen test lifecycle: Scope → Footprint → Map entry points → Attack controls (auth, session, access) → Test inputs (injection, XSS, CSRF, logic) → Report
Every input that reaches the server is an attack surface — URL params, POST body, headers, cookies, hidden fields
Client-side controls (JavaScript, HTML attributes) provide zero security — a proxy bypasses them all
Passive reconnaissance leaves no trail and should be conducted first; active reconnaissance directly engages the target and leaves traces
Privilege escalation, pivoting, and persistence are the three critical post-exploitation concepts for Security+ exam context
CVSS base score is the standard for rating web vulnerability severity; validate all scanner findings before reporting
The report is the deliverable — a vulnerability not clearly communicated with severity, evidence, and remediation guidance will not get fixed

References 参考资料

OWASP Testing Guide: https://owasp.org/www-project-web-security-testing-guide/
OWASP Top 10: https://owasp.org/www-project-top-ten/
Stuttard & Pinto — The Web Application Hacker’s Handbook, 2nd Edition
Howard & LeBlanc — Writing Secure Code
CVSS Calculator (FIRST): https://www.first.org/cvss/calculator/3.0
Pluralsight: Web Application Penetration Testing Fundamentals

Web, PenetrationTesting

This post is licensed under CC BY 4.0 by the author.
