2. Operating System Services, Interfaces, and Structure

Source: CS 536 Operating Systems — Chapter 2: Operating-System Structures

Overview

Chapter 2 covers the services an OS provides, how users and programs interact with it through interfaces and system calls, how programs are compiled and loaded, and how the OS kernel itself is structured — from monolithic to microkernel to hybrid designs.

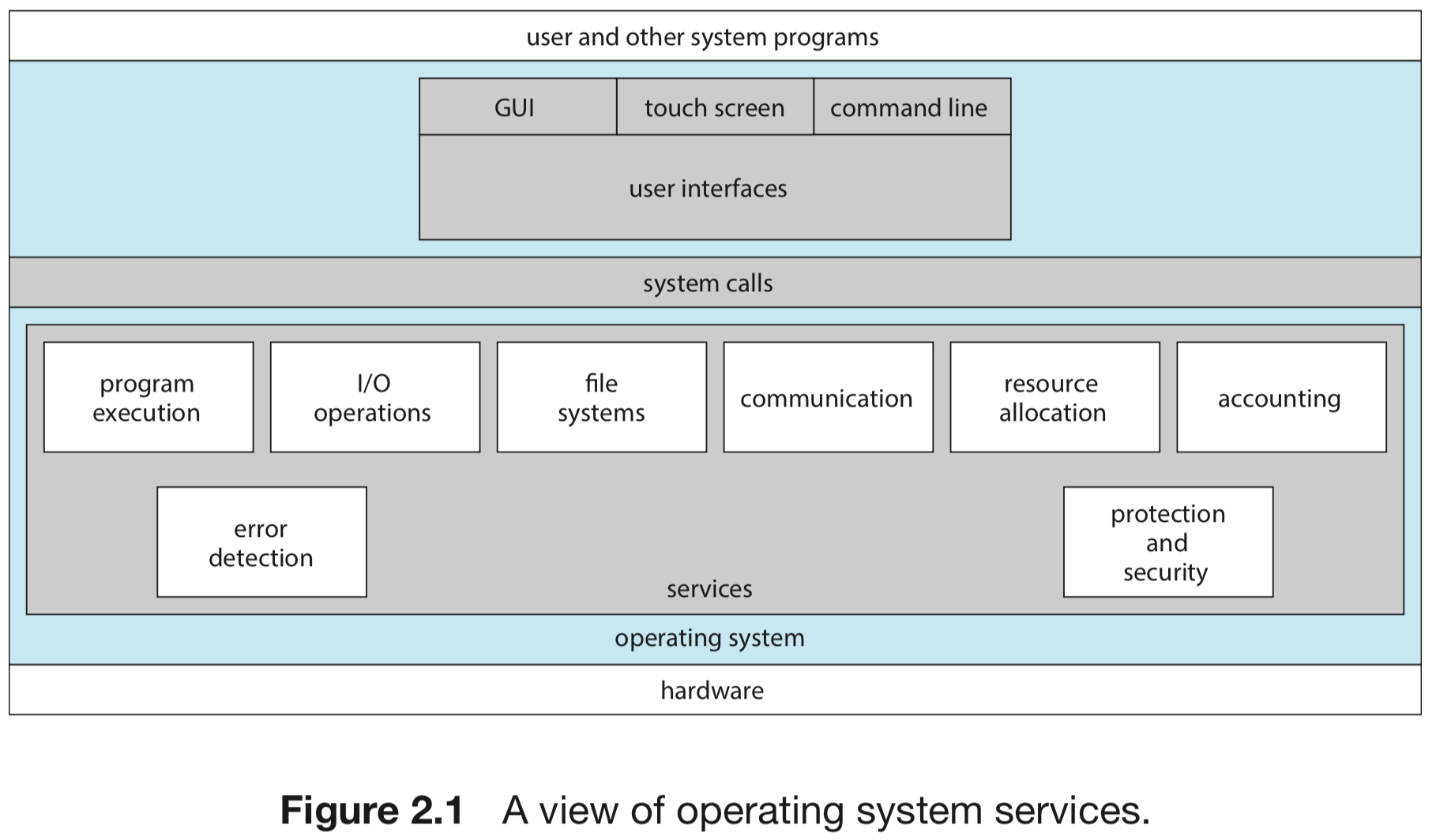

2.1 Operating-System Services 操作系统服务

An operating system provides an environment for the execution of programs. It makes certain services available to programs and to the users of those programs. Figure 2.1 shows the common classes of OS services and how they interrelate.

Services Helpful to the User 面向用户的服务

Service	Description
User Interface (UI)	Almost all OSes provide a UI — GUI, touch-screen, or CLI
Program execution	Load a program into memory and run it; end normally or abnormally
I/O operations	Mediate all I/O on behalf of user programs; users cannot control devices directly
File-system manipulation	Read, write, create, delete, search, list files/directories; permissions management
Communication	Exchange information between processes on the same machine or across a network, via shared memory or message passing
Error detection	Detect and correct errors in CPU, memory, I/O devices, and user programs; take appropriate action (halt, terminate process, return error code)

Services for Efficient System Operation 面向系统效率的服务

Service	Description
Resource allocation	Allocate CPU cycles, memory, storage, and I/O devices across multiple concurrent processes
Logging / Accounting	Track which programs use how much of which resources; used for billing or performance analysis
Protection and security	Ensure all access to system resources is controlled; require user authentication; defend against invalid external access

Protection vs Security:

Protection
: ensures all access to system resources is controlled
Security
: defends against external threats — authentication, I/O device defense, break-in detection
“A chain is only as strong as its weakest link” — both must be applied throughout the system

2.2 User and Operating-System Interface 用户与操作系统接口

Three fundamental interfaces exist between the user and the OS:

Interface	Description
Command-Line Interface (CLI)	Text commands; preferred by system administrators and power users
Graphical User Interface (GUI)	Mouse-and-window system; desktop metaphor
Touch-Screen Interface	Gesture-based; used by smartphones and tablets

2.2.1 Command Interpreters 命令解释器

Most OSes treat the command interpreter as a special program that runs when a process is initiated or when a user logs on. On systems with multiple interpreters, they are called shells.

UNIX/Linux shells: C shell, Bourne-Again shell (bash), Korn shell, and others
The main function of the command interpreter: get and execute the next user-specified command

Two implementation approaches:

Interpreter contains the code — the command interpreter itself executes each command; each command requires its own implementing code, making the interpreter large
Commands are system programs (used by UNIX) — the interpreter uses the command name to identify a file to load into memory and execute; adding new commands only requires creating new files; the interpreter stays small


# UNIX approach: the command interpreter finds and runs the "rm" program
rm file.txt
# equivalent to: load /bin/rm into memory, execute with argument file.txt

2.2.2 Graphical User Interface 图形用户界面

A GUI uses a desktop metaphor: icons represent programs, files, directories, and functions; mouse clicks invoke programs or pull down menus.

First GUI appeared on the Xerox Alto (1973); popularized by Apple Macintosh (1980s)
macOS uses the Aqua interface; Windows added GUI to MS-DOS in version 1.0
UNIX traditionally CLI-dominant; KDE and GNOME are open-source GUIs for Linux/UNIX

2.2.3 Touch-Screen Interface 触摸屏界面

Smartphones and tablets use touch-screen interfaces.

Users interact via gestures (press, swipe)
Physical keyboard or simulated keyboard on screen
iPad and iPhone use the Springboard touch-screen interface

2.2.4 Choice of Interface 接口选择

Interface	Best for
CLI	System administrators, power users — faster, scriptable, repeatable tasks
GUI	General users — intuitive, visual, easier to learn
Touch	Mobile users — no physical keyboard required

Shell scripts: CLI commands recorded in a file and run as a program (not compiled); very common on UNIX/Linux.

macOS now provides both the Aqua GUI and a CLI. Windows recent versions provide both standard GUI (desktop/laptop) and touch-screen (tablets). Mobile iOS/Android users almost exclusively use touch.

2.3 System Calls 系统调用

System calls

provide an interface to the services made available by an operating system. Written in C/C++; low-level tasks may require assembly.

2.3.1 Example — File Copy Sequence

A simple cp in.txt out.txt operation requires many system calls:

Acquire input/output file names (write prompt, read input)
Open input file (error if not found)
Create/open output file (handle conflicts)
Loop: read from input, write to output (handle errors)
Close both files
Write completion message
Terminate normally

Acquire input file name    → write prompt to screen, accept input
Acquire output file name   → write prompt to screen, accept input
Open the input file        → if file doesn't exist, abort
Create output file         → if file exists, abort
Loop: read from input file, write to output file (until read fails)
Close output file
Write completion message
Terminate normally

2.3.2 Application Programming Interface (API) 应用程序编程接口

Most programmers design programs according to an API rather than invoking system calls directly. The API specifies functions, parameters, and return values.

Common APIs:

Windows API — for Windows systems
POSIX API — for POSIX-based systems (UNIX, Linux, macOS)
Java API — for programs running on the Java virtual machine

The run-time environment (RTE) provides a system-call interface that intercepts API function calls and invokes the appropriate system calls. A number is associated with each system call; the system-call interface maintains a table indexed by those numbers.

Why use an API instead of direct system calls?

Portability: code compiles and runs on any system supporting the same API
Simplicity: actual system calls are more complex and detailed

Example — read() system call (POSIX):


#include <unistd.h>
ssize_t read(int fd, void *buf, size_t count);
// fd: file descriptor to read
// buf: buffer to read into
// count: max bytes to read
// returns: bytes read; 0 = EOF; -1 = error

Parameter-passing methods:

Method	Description
Registers	Simplest; limited by number of registers (Linux: <= 5 params)
Block/table in memory	Address of block passed in a register (Linux: > 5 params)
Stack	Parameters pushed; OS pops them; no limit on count or size

2.3.3 Types of System Calls 系统调用类型

Category	Examples
Process control	`fork()`, `exit()`, `wait()`, `exec()`, `create_process()`, `terminate_process()`, `get/set_process_attributes()`, `acquire/release_lock()`
File management	`create()`, `delete()`, `open()`, `close()`, `read()`, `write()`, `reposition()`, `get/set_file_attributes()`
Device management	`request()`, `release()`, `read()`, `write()`, `reposition()`, `get/set_device_attributes()`
Information maintenance	`time()`, `date()`, `dump()`, `get/set_process_attributes()`, `strace` (Linux)
Communications	`open/close_connection()`, `send/receive_messages()`, `shared_memory_create/attach()`
Protection	`set/get_permission()`, `allow/deny_user()`

Windows vs UNIX equivalents:

Category	Windows	UNIX
Process	`CreateProcess()`, `ExitProcess()`, `WaitForSingleObject()`	`fork()`, `exit()`, `wait()`
File	`CreateFile()`, `ReadFile()`, `WriteFile()`, `CloseHandle()`	`open()`, `read()`, `write()`, `close()`
IPC	`CreatePipe()`, `CreateFileMapping()`, `MapViewOfFile()`	`pipe()`, `shm_open()`, `mmap()`
Protection	`SetFileSecurity()`, `InitializeSecurityDescriptor()`	`chmod()`, `umask()`, `chown()`

Two IPC models:

Model	Mechanism	Best for
Message passing	Processes exchange packets via OS; connection required	Smaller data; easier for cross-computer IPC
Shared memory	Two or more processes read/write a shared memory region	Maximum speed; memory-transfer rates; requires synchronization

FreeBSD multitasking example:


# fork() creates a new process
# exec() loads the program into memory
# exit() terminates and returns status code
./program &   # run in background; shell continues

2.4 System Services 系统服务

System services

(also called system utilities) provide a convenient environment for program development and execution. Categories:

Category	Description
File management	Create, delete, copy, rename, print, list files and directories
Status information	Date/time, memory/disk space, number of users; some systems support a registry
File modification	Text editors; commands to search or transform file contents
Programming-language support	Compilers, assemblers, debuggers, interpreters (C, C++, Java, Python)
Program loading and execution	Absolute/relocatable loaders, linkage editors, overlay loaders, debuggers
Communications	Virtual connections among processes, users, computers (web browser, email, remote login, file transfer)
Background services (daemons)	Launched at boot; run until system halted (network daemons, process schedulers, print servers, error monitors)

The view of the OS seen by most users is defined by application and system programs, not the underlying system calls.

2.5 Linkers and Loaders 链接器与加载器

A program resides on disk as a binary executable. To run, it must be loaded into memory within a process context.

Compilation pipeline:

main.c
  ↓  gcc -c main.c          (compiler)
main.o                       (relocatable object file)
  ↓  gcc -o main main.o -lm  (linker)
main                         (executable)
  ↓  ./main                  (loader)
program in memory

Step	Tool	Description
Compile	Compiler	Source → relocatable object file (can be loaded at any physical address)
Link	Linker	Combine relocatable object files into a single binary executable; include libraries
Load	Loader	Load binary into memory within the address space of a new process; perform relocation (assign final addresses)

On UNIX: fork() creates the process, exec() invokes the loader.

Dynamic linking: Most systems allow libraries to be linked at load/run time (DLLs on Windows). Advantages: avoids loading unused libraries; multiple processes can share the same dynamically linked library.

Executable formats:

UNIX/Linux: ELF (Executable and Linkable Format) — separate formats for relocatable and executable files
Windows: PE (Portable Executable)
macOS: Mach-O


file main.o   # ELF relocatable file
file main     # ELF executable
readelf main  # inspect ELF sections

2.6 Why Applications Are Operating-System Specific 应用程序的操作系统特异性

Applications compiled on one OS are generally not executable on other OSes, due to:

Binary format — each OS defines the layout of headers, instructions, and variables in executable files
CPU instruction sets — only applications with the appropriate instructions can execute correctly
System calls — OSes differ in system-call names, numbering, operands, ordering, and return values

Three ways to achieve portability:

Approach	Mechanism	Tradeoff
Interpreted language	Interpreter (Python, Ruby) runs on multiple OSes	Slower; subset of OS features
Virtual machine	Java RTE/JVM runs bytecode on any platform where RTE is available	Slower; complex deployment
Standard API + porting	POSIX API; compile natively for each OS	Best performance; requires porting effort per OS

ABI vs API:

API
: application-level interface (functions, parameters, return values)
ABI (Application Binary Interface)
: architecture-level interface — address width, parameter passing, stack organization, binary format, data type sizes; specific to a CPU architecture + OS pair (e.g., ARMv8 ABI)

2.7 Operating-System Design and Implementation 操作系统的设计与实现

2.7.1 Design Goals 设计目标

Requirements split into two groups:

Group	Concerns
User goals	Convenient to use, easy to learn, reliable, safe, fast
System goals	Easy to design/implement/maintain; flexible, reliable, error-free, efficient

There is no unique solution — different requirements lead to vastly different systems (e.g., VxWorks RTOS vs Windows Server).

2.7.2 Mechanisms and Policies 机制与策略

The most important principle: separate policy from mechanism.

Concept	Definition	Example
Mechanism	Determines how to do something	Timer construct ensures CPU protection
Policy	Determines what will be done	How long the timer is set for a particular user

Why separate them? Policies change over time and across environments. A general mechanism flexible enough to work across a range of policies avoids the need to change the mechanism every time the policy changes.

Microkernel OSes: almost policy-free mechanisms; policies added via user-created modules
Windows/macOS: mechanism and policy tightly encoded in the system; enforces global look and feel
Linux: open-source; anyone can modify the scheduler or other policy components

2.7.3 Implementation 实现

Early OSes: assembly language. Modern OSes: mainly C/C++; small amounts of assembly for low-level hardware interaction.

Android layered implementation:

Kernel: mostly C + some assembly
System libraries: C or C++
Application frameworks: mostly Java

Advantages of high-level language:

Faster to write, more compact, easier to debug
Compiler improvements benefit the whole OS
Easier to port to new hardware

Performance note: Major performance improvements come from better data structures and algorithms, not assembly optimization. Critical routines (interrupt handlers, I/O manager, memory manager, CPU scheduler) can be optimized after the system works correctly.

2.8 Operating-System Structure 操作系统结构

2.8.1 Monolithic Structure 单体结构

All OS functionality in a single, static binary running in a single address space. Example: original UNIX, Linux.

Users
  ↓
shells / compilers / system libraries
  ↓ (system-call interface)
kernel: file system, CPU scheduling, memory management, I/O, device drivers
  ↓ (kernel interface to hardware)
hardware: terminals, disks, memory

Linux kernel structure (Figure 2.13):

applications
  ↓ (glibc standard C library)
system-call interface
  ↓
kernel: file systems, CPU scheduler, networks (TCP/IP), memory manager, block/character devices, device drivers
  ↓
hardware

Advantages: minimal system-call overhead; fast intra-kernel communication; high performance
Disadvantages: difficult to implement and extend; changes in one area can affect others (tightly coupled)

Linux is monolithic but modular — the kernel can be modified at run time via loadable kernel modules.

2.8.2 Layered Approach 分层方法

OS divided into layers, each implemented using only operations provided by lower layers.

Layer N: user interface
Layer N-1: ...
Layer 1: hardware abstraction
Layer 0: hardware

Advantage: simplicity of construction and debugging — each layer verified independently
Disadvantage: poor performance (user programs traverse multiple layers); difficult to define layer boundaries cleanly
Used in networking (TCP/IP) and web applications; rarely used as the sole OS structure

2.8.3 Microkernels 微内核

Developed by Carnegie Mellon in the mid-1980s (Mach). Removes all nonessential components from the kernel; implements them as user-level programs in separate address spaces.

Minimal kernel provides:

Basic process and memory management
Communication (message passing / IPC)

Client programs communicate with services via message passing through the microkernel — never directly.

Aspect	Detail
Advantage	Easier to extend (add services in user space); easier to port; more security/reliability (service failures don’t crash the kernel)
Disadvantage	Performance overhead — messages must be copied between separate address spaces; process switches to exchange messages

Examples: Darwin (macOS/iOS kernel component — combines Mach microkernel + BSD), QNX (real-time embedded OS).

2.8.4 Modules 可加载内核模块

The best current methodology: Loadable Kernel Modules (LKMs). The kernel has core components; additional services are linked in dynamically at boot time or run time.

Core services (CPU scheduling, memory management) built directly into the kernel
Support for different file systems, device drivers added via loadable modules
Similar to layered system (protected interfaces) but more flexible (any module can call any other)
More efficient than microkernel (no message passing needed between modules)


# Linux LKM operations
insmod  mymodule.ko   # insert module
rmmod   mymodule.ko   # remove module
lsmod                 # list loaded modules
# USB device plugged in → kernel dynamically loads the driver

2.8.5 Hybrid Systems 混合结构

Most real OSes combine multiple approaches.

OS	Structure	Notes
Linux	Monolithic + modular	Single address space (performance) + LKMs (extensibility)
Windows	Mostly monolithic + microkernel elements	Operating-system personalities run as user-mode processes; supports dynamically loadable modules
macOS/iOS	Hybrid (Darwin = Mach + BSD)	Mach microkernel + BSD kernel in same address space (avoids message-passing overhead)
Android	Linux-based + ART VM + HAL	Modified Linux kernel + Bionic C library + ART ahead-of-time compiler

macOS/iOS architecture layers:

User experience (Aqua / Springboard)
Application frameworks (Cocoa / Cocoa Touch)
Core frameworks (QuickTime, OpenGL)
Kernel environment — Darwin (Mach microkernel + BSD)

Darwin provides two system-call interfaces: Mach traps and BSD POSIX system calls. All services run in the same address space — message passing within Mach requires no copying.

Android architecture:

Applications (Java, compiled to .dex)
Android frameworks
Android RunTime (ART) — AOT compilation (.dex → native machine code)
Native libraries (webkit, SQLite, SSL, OpenGL) via JNI
Bionic (Android's custom C library, smaller than glibc)
Linux kernel (modified for power management, Binder IPC)
HAL (Hardware Abstraction Layer)
Hardware

ART uses ahead-of-time (AOT) compilation: .dex files compiled to native code at install time (more efficient, less power)
JNI
(Java Native Interface): allows Java programs to access hardware directly; not portable across devices
HAL
: abstracts all hardware (camera, GPS, sensors) so apps are portable across different hardware platforms
Bionic
: smaller than glibc; optimized for slower mobile CPUs; avoids GPL licensing

Windows Subsystem for Linux (WSL):

Windows 10 adds WSL, allowing native Linux ELF binaries to run on Windows. bash.exe starts a Linux instance with init and /bin/bash running in a Windows Pico process. LXSS/LXCore translates Linux system calls to Windows equivalents; fork() is handled by combining LXSS work with CreateProcess().

2.9 Building and Booting an Operating System 系统的构建与启动

System Boot Process 系统启动过程

Booting

: the process of starting a computer by loading the kernel.

Standard boot sequence:

Computer powered on → run bootstrap program / boot loader (small code in nonvolatile firmware)
Bootstrap program locates the kernel
Kernel is loaded into memory and started
Kernel initializes hardware
Root file system is mounted
Kernel starts the init daemon (Linux: systemd) which starts other services

Multistage boot process:

Stage	Component	Role
1	BIOS / UEFI (firmware)	Run on power-on; initial boot loader
2	Boot block (MBR/GPT)	Located at fixed disk location; loaded by BIOS/UEFI
3	GRUB (Linux)	Grand Unified Boot Loader; loads the kernel; supports multiple kernels and boot targets
4	Kernel	Loaded into memory; initializes hardware; mounts root FS; starts init
5	init / systemd	PID 1; starts all system services

BIOS vs UEFI:

	BIOS	UEFI
Architecture	16-bit, legacy	64-bit, modern
Boot stages	Multistage (slower)	Single complete boot manager (faster)
Disk support	MBR (< 2 TB)	GPT (large disks)

UEFI’s greatest advantage: it is a single, complete boot manager — faster than the multistage BIOS process.

GRUB configuration example:


# /proc/cmdline — kernel parameters set by GRUB at boot time
BOOT_IMAGE=/boot/vmlinuz-4.4.0-59-generic
root=UUID=5f2e2232-4e47-4fe8-ae94-45ea749a5c92

Linux kernel image boot sequence:

Boot loader creates initramfs — a temporary RAM file system containing drivers and kernel modules needed to support the real root file system
Kernel decompresses itself from the compressed image
Loads necessary drivers from initramfs
Switches root file system from the temporary RAM location to the real root file system
Creates systemd (PID 1), which starts all other services
Presents the user with a login prompt

Android boot differences:

Does not use GRUB; vendors provide their own boot loader (most common: LK — Little Kernel)
Android maintains initramfs as the root file system (unlike Linux, which discards it)
After mounting root FS, starts init process, then displays the home screen

Recovery mode: Most boot loaders support booting into recovery/single-user mode for diagnosing hardware, fixing corrupt file systems, or reinstalling the OS.

2.10 Operating-System Debugging 操作系统调试

Debugging

: finding and fixing errors — both hardware and software, including performance problems (performance tuning).

2.10.1 Failure Analysis 故障分析

Process failure: OS writes error info to a log file; may take a core dump (memory snapshot) for later debugger analysis
Kernel failure: called a crash; error info saved to a log file; memory state saved to a crash dump
Crash dump strategy: kernel saves memory to a reserved disk section (no file system) before reboot; a post-reboot process moves it into a file system

2.10.2 Performance Monitoring and Tuning 性能监控与调优

Tools use either counters or tracing.

Counter-based tools (Linux):

Scope	Tool	Purpose
Per-process	`ps`	Reports info for selected processes
Per-process	`top`	Real-time statistics for current processes
System-wide	`vmstat`	Memory usage statistics
System-wide	`netstat`	Network interface statistics
System-wide	`iostat`	Disk I/O usage

Most Linux counter-based tools read from the /proc pseudo file system (exists only in kernel memory; organized as a directory hierarchy; /proc/<pid> for per-process stats).

Tracing tools (Linux):

Scope	Tool	Purpose
Per-process	`strace`	Traces system calls invoked by a process
Per-process	`gdb`	Source-level debugger
System-wide	`perf`	Collection of Linux performance tools
System-wide	`tcpdump`	Collects network packets

2.10.3 BCC — BPF Compiler Collection

BCC

(BPF Compiler Collection): a rich toolkit providing dynamic, low-impact kernel tracing for Linux.

Front-end interface to eBPF (extended Berkeley Packet Filter)
eBPF programs written in C, compiled into eBPF instructions dynamically inserted into the running kernel
A verifier checks that eBPF instructions do not affect system performance or security before insertion
BCC provides a Python front-end to make eBPF tools easier to write
Tools can be used on live production systems without causing harm


# disksnoop.py — trace disk I/O activity
./disksnoop.py
# TIME(s)          T  BYTES  LAT(ms)
# 1946.29186700   R      8    0.27
# 1946.33965000   R      8    0.26
# 1948.34585000   W   8192    0.96

# opensnoop — trace open() calls by a specific process
./opensnoop -p 1225

“Debugging is twice as hard as writing the code in the first place. Therefore, if you write the code as cleverly as possible, you are, by definition, not smart enough to debug it.” — Kernighan’s Law

Key Takeaways

OS services split
: user-facing (UI, program execution, I/O, file system, communication, error detection) and system-efficiency (resource allocation, logging, protection/security).
Three UI types
: CLI (text commands, scriptable, power users), GUI (desktop metaphor), touch-screen (gesture-based, mobile). UNIX CLI uses shells; commands are separate programs found by name, not built into the interpreter.
System calls
: the interface between user programs and OS services; accessed through an API (POSIX, Windows, Java). Parameters passed via registers, memory block, or stack. Six categories: process control, file management, device management, information maintenance, communications, protection.
IPC models
: message passing (OS-mediated, easier across computers) vs shared memory (memory-speed, requires synchronization). Both commonly provided.
Linker/Loader pipeline
: source → compiler → relocatable object → linker → executable → loader → program in memory. Dynamic linking avoids loading unused libraries; ELF is the UNIX/Linux binary format.
Mechanism vs policy separation
: mechanism = how; policy = what. Separating them enables flexible reconfiguration without changing underlying implementation.
OS structures
: monolithic (single address space, fast, hard to maintain); layered (debuggable, poor performance); microkernel (extensible, secure, slow IPC); loadable modules (best of layered + microkernel, flexible, efficient); hybrid (most real systems).
Darwin
: macOS/iOS kernel = Mach microkernel + BSD in same address space (avoids IPC copying overhead).
Android
: Linux kernel + ART (AOT compilation) + HAL + Bionic; maintains initramfs as root FS; Binder IPC.
Boot process
: firmware (BIOS/UEFI) → boot loader (GRUB) → kernel → initramfs → systemd → login. UEFI faster than BIOS (single complete manager). Linux discards initramfs after loading drivers; Android keeps it.
Debugging tools
: counters (ps, top, vmstat, netstat, iostat via /proc) vs tracing (strace, gdb, perf, tcpdump). BCC/eBPF enables live production tracing with no system risk.

References

Operating System Concepts — Silberschatz, Galvin & Gagne, Chapter 2 (Operating-System Structures)
CS 536 Operating Systems — Lecture notes: Chapter 2

00LearningPath, 536OS

This post is licensed under CC BY 4.0 by the author.
